電離子切割機零件

ESAB PT-36 (m3 系統)
第 1 2 頁

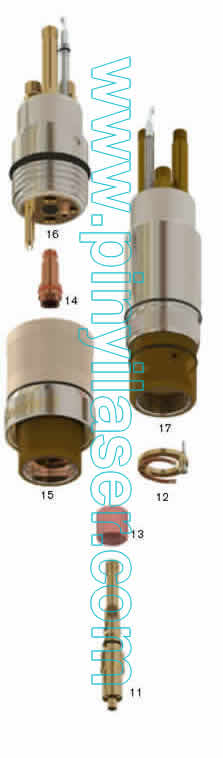

	型號	產品概述	包裝數量
11	0558003924	Electrode holder	1
12	0558003858	Contact ring 組件	1
	37073	螺絲, contact ring	1
13	0558005457	Gas baffle, 4X.022, 35–70A	1
	0558002533	Gas baffle, 4X.032, 100–280A	1
	0558002530R, 35661	Gas baffle, 8 x .047, 250–600A, reverse	1
	0558001625	Gas baffle, 8X.047, 300–600A	1
	0558003918	Electrode 螺母 driver	1
	0558001626	Double threaded mounting 真空管	1
14	N/A	Electrode holder mounting 螺母	1
15	0558003804	噴槍頭, quick-change, PT-36	1
16	0558003804	噴槍底板, quick-change, PT-36	1
	0558003804	噴槍套件, quick-change, PT-36	1
17	0558003804	噴槍本體	1
	N/A	I H S wire 組件 kit	1
	N/A	Bullet plug kit, quick-change 噴槍	1
	N/A	O型圈套件, bullet plugs	1
	N/A	O型圈套件, mounting 螺母	1
	N/A	O型圈套件, retaining cap	1
	N/A	Lubricant .25 oz. (7 ml) 真空管	1

型號	產品概述	包裝數量
N/A	噴槍底板, quick-change, PT-36	1
N/A	噴槍頭, quick-change, PT-36	1
N/A	Electrode holder mounting 螺母	1
0558003924	Electrode holder	1
N/A	噴嘴 retaining cap	1
0000021944	Diffuser, 100–600A	1
N/A	O型圈套件, bullet plugs	1
N/A	O型圈套件, mounting 螺母	1
N/A	O型圈套件, retaining cap	1
N/A	Lubricant .25 oz. (7 ml) 真空管	1
N/A	Field service bulletin	1
